ESAB Arc 250i - Heavy Duty Single Phase MMA Inverter
Inclusive of all taxes
You Save: 0. Discount: 0%
-
Product is not available
1
Yes
In Stock
ESAB
Brand Name : ESAB

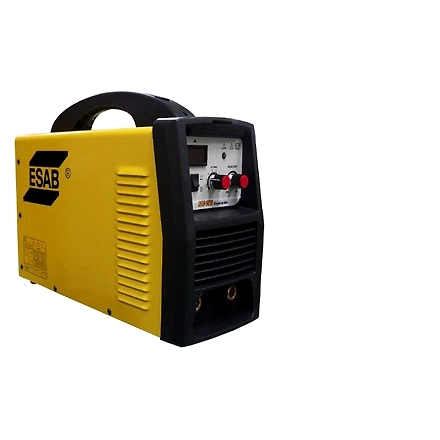

Product Name : Arc 250i - Heavy Duty Single Phase MMA Inverter welding power source designed for light and heavy duty applications for continuous electrode usage.
Features:
- Designed for MMA electrodes upto 4.0mm size -MSGP, LH, Stainless steel and Cellulosic.
- Wide mains voltage tolerance range 196V-264V.
- Adjustable Arc force for Superior Arc control.
- Digital Display for set current reference.
- Ready to weld package with Electrode Holder and Earth Clamp
Industry:
- Light fabrication
- Furniture & decorative products
- Plant Maintenance & Repair
- Civil Construction
Specification:
Mains Supply, V/Ph, Hz : 230 ±15% / 1, 50
Input Power (Max), KVA : 12
Output Current Range, A : 30 –250
Maximum load at 60% duty cycle, A : 250
Maximum load at 100% duty cycle, A : 194
Open Circuit Voltage, V : 80
Efficiency : 88
Enclosure Class : IP 21S
Insulation Class : H
Cooling : Forced Air
Dimensions LxWxH : 435 x 170 x 275 mm
Weight : 11 Kg
Recommended dia of Electrode for welding, mm : Upto 4.0, occasionally 5.0
Standards of Conformity : EN 60974-1
Power Specifications
Current Range A : 30-250A
Welding Output : 194 A @ 100%
: 250 A @ 60%
Input Voltage
Frequency : 50 Hz
Phase : 1
Ordering Information:
Description : Part Number
ARC 250i : 4610210250
Holder Handi Cool : 2002001009
Earth Clamp 300 : 2002002004
HFR Welding Cable CU 35 Sq mm : 4600600181
QDO 300 Drying Oven : 2002003001
Chipping Hammer : 2002005005
Eco Arc II Helmet (83 X 108mm) : 0700000986
Filter Lens - Shade 13, 83x108 : 0701416376
A20 Auto-Darkening Helmet : 0700000720
Welding Hand Gloves (5pair) : 2001005011
Welding Apron (Large) : 2001007001
Welding Sleeve : 2001007002
Welding Leg Guard : 2001007003
Country of Origin : India
-
